Independent Test Results

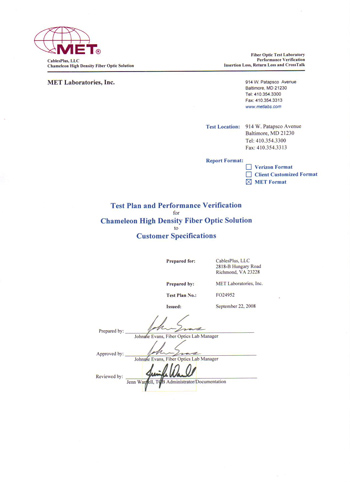

Read the full Met-Labs test results here.

144-Fiber MTP Brand Cassette Testing Details
Optical Specs (100% Interferometer Tested)
  72-Fiber Cassette 12-Fiber Cassette
  Typical Maximum Typical Maximum
Insertion Loss < 0.55 dB < 0.80 dB < 0.20 dB < 0.50 dB
Results included for each serialized assembly



Sample Reading

PASS Max. Diff. Height All Fib. (nm) 645
X Endface Angle (°) 0.136 Max. Diff. Height Adj. Fib. (nm) 357
Y Endface Angle (°) -0.215 Flatness Deviation (nm) -829
X ROC (mm) 8450 Max. Core Dip (nm) -77
Y ROC (mm) 420 Valid Pixels Ration (%) 56
Results may vary.




144-Fiber MTP Brand Backbone Harness Testing Data

Optical Specs (100% Interferometer Tested)

  72-Fiber (Backbone) 12-Fiber (Distribution)
  Typical Maximum Typical Maximum
Insertion Loss < 0.36 dB < 0.60 dB < 0.20 dB < 0.50 dB
Results included for each serialized assembly



Sample Reading
PASS Max. Diff. Height All Fib. (nm) 645
X Endface Angle (°) 0.136 Max. Diff. Height Adj. Fib. (nm) 357
Y Endface Angle (°) -0.215 Flatness Deviation (nm) -829
X ROC (mm) 8450 Max. Core Dip (nm) -77
Y ROC (mm) 420 Valid Pixels Ration (%) 56
Results may vary.
